Details

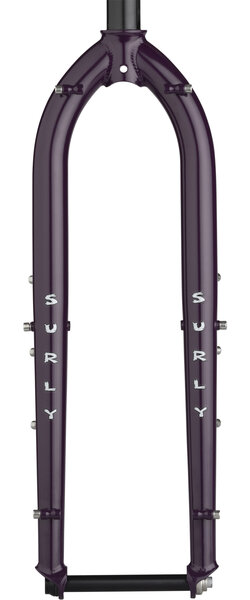

Karate Monkey Rigid Fork
Employed on our Krampus and Karate Monkey frames, this fork has 15mm thru-axle dropouts spaced at 110mm and clearance for up to a 29 x 3.0" tire. To accommodate such big tires it's got a longer axle-to-crown measurement than our Ogre or original Karate Monkey forks, making it a perfect rigid fork option for lots of 29ers out there. The Karate Monkey fork's blades were designed and manufactured specifically to play well with the unique forces such a long fork with big tires will encounter, and the steer tube is standard 1-1/8" threadless. It has line guides for a disc brake line as well as mid-blade thru-blade eyelets and Three-Pack bosses on both fork legs.
Features:
- Tire Clearance: 29 x 3.0"
- Axle-to-crown: 483mm
- Offset: 47mm
- Steerer: 260mm
- 110mm hub spacing
- 15mm thru-axle dropouts
- Tapered and butted straight blade
- 51mm I.S. disc mount
- Weight: 1180g uncut
- 100% Surly Chromoly Steel
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
110 x 15mm / Organic Eggplant / 1-1/8-inch Straight / 27.5+/29-inch | 708752391222 | FK0135 | 210000053156 |
