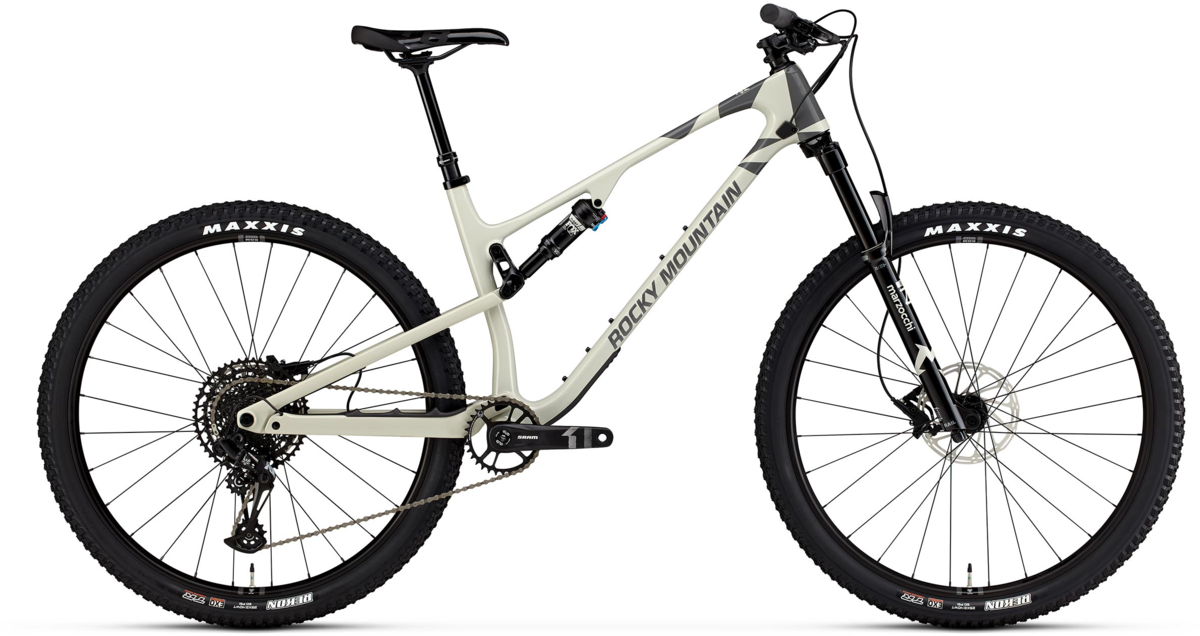

Rocky Mountain Element C30 Sram

Rocky Mountain Element C30 Sram
$4,499.00
Color: Beige/Grey
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

Purpose-built to hit the precise sweet spot between lightweight cross-country climbing prowess and technical precision, the Element is the best of both worlds and more. New-levels of climbing efficiency guarantees that oh-so-sweet feeling of riding someone off your wheel. Added levels of stability on fast descents and a pseudo-aggressive seat tube angle provides surprising levels of confidence on tight single track and hairy descents. Light. Stiff. Fast. Smooth. Precise. You’re now in your Element—always.

Sizes:
SMMDLGXL
Top Tube Horizontal (mm) 577 605 632 664
Head Tube Angle (deg) 65 65 65 65
Head Tube Length (mm) 105 115 125 135
Seat Tube Angle (deg) 76 76 76 76
Seat Tube Length (mm) 380 420 445 480
Rear Centre (mm) 436 436 436 436
Bottom Bracket Drop (mm) 47 47 47 47
Reach (mm) 425 450 475 505
Stack (mm) 606 615 624 633
Standover Height (mm) 810 808 806 804
Wheelbase (mm) 1173 1202 1231 1265
Sizes:
Frame SizeMeasurements
X-Small 27.5”: 142.5 - 157.5 cm / 4’8” - 5’2”
Small 29”: 157.5 - 170 cm / 5’2” - 5’7”
Medium 29”: 167.5 - 177.5 cm / 5’6” - 5’10”
Large 29”: 175 - 188 cm / 5’9” - 6’2”
X-Large 29”: 185.5 - 198 cm / 6’1” - 6’6”

Specs

Frame SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry + Suspension Rate | 120mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork Marzocchi Z2 Float EVOL Rail 130mm | 44mm Offset
Rear Shock Fox Float DPS Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ
Tires F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready
Brakes Sram Level 2 Piston | Resin Pads
Rims WTB ST Light i27 TCS 2.0 Tubeless | 28H / Tubeless Ready - Tape / Valves Incl
Crankset Sram X1 Eagle | 32T | DUB Spindle | Crankarm Length: XS = 165mm | SM - XL = 170mm
Bottom Bracket Sram BB92 DUB
Shifters Sram NX Eagle
Cassette/Freewheel Sram PG-1230 11-50T
Rear Derailleur Sram NX Eagle
Headset FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Handlebars Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Chain Sram SX Eagle
Tape/Grips Rocky Mountain Lock On Light
Stem Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50mm
Seatpost X Fusion Manic Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
Saddle WTB Volt 142
Hubs Front Hub: Rocky Mountain SL Sealed Boost 15mm
Rear Hub: Novatec MTB SL Team Boost 148mm
Spokes 2.0 Stainless

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Beige/Grey / Medium / 29-inch 770416478433 B0314MD2 210000055690
Beige/Grey / Large / 29-inch 770416478471 B0314LG2 210000055692
